smart High Temperature Intelligent Pressure Switch Max 600bar For Liquid Gas Steam

Brand Name : WNK

Model Number : WNK-SPS

Place of Origin : Anhui, China

MOQ : 1pcs

Price : $85.00 - $105.00/Pieces

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 2000 Set/Sets per Week

Delivery Time : 5-8 work days

Packaging Details : each product in one inner paper box with foam protection

Max. Current : 1.0A

Max. Voltage : 30V DC

Max. Working Pressure : 600bar

Measured media : liquid, gas and steam

Pressure range : -100KPa~60MPa

Output signals : 4~20mA, 0-5V, 0-10V, RS485

Accuracy : 0.5%F.S

Switching type : NO/NC

Display : OLED

Protection class : IP65

Housing material : 304SST

Power supply : 12-30V DC

Port : Shanghai port

Contact Now

4-20mA Modbus Output Flush Diaphragm High Temperature Electronic Pressure Switch

Introduction - SPS Intelligent Electronic Pressure Switch with OLED Display

The pressure switch SPS is designed for pressure monitoring and measure-ment in liquid and gaseous media. The SPS is suited for general industrial applications such as machine and plant engineering, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one and the same device. In its standard configuration it has two switching outputs (PNP or NPN). In addition, there are configurations available with an analog output signal (0...20mA| 420 mA or 0...5V| 010 V) as well as with RS485 Link.

Product Features - SPS Intelligent Electronic Pressure Switch with OLED Display

1. Smart type, with PNP/NPN switching.
2. Swithing points settable, NO/NC availalbe
3. With OLED display, with 5 digit available.
4. Provide RS485 communication for option.

Production Spec

SPS Intelligent Electronic Pressure Switch with OLED Display
Applicable media	Liquid, Gas, Steam
Pressure measurment	Gauge Pressure, Absolute pressure
Pressure range	-100kPa~60MPa
Output Signal	2×PNP + 0V~5VDC/10VDC + MODBUS(RS485)
Output Signal	2×PNP + 0mA/4mA~20mADC + MODBUS(RS485)
Accuracy	0.5% FS
Stability	±0.3% FS/year
Switch current	1.0A(Max.)
Switching type	Normally open / closed (settable)
Display	OLED (Optional)
Housing material	304 stainless steel
Mechanical connection	M20×1.5; 1/2-18NPT, 1/4NPT, Customize
Storge temperature	-40~80℃
Process temperature	-30~80℃
Protection class	IP65

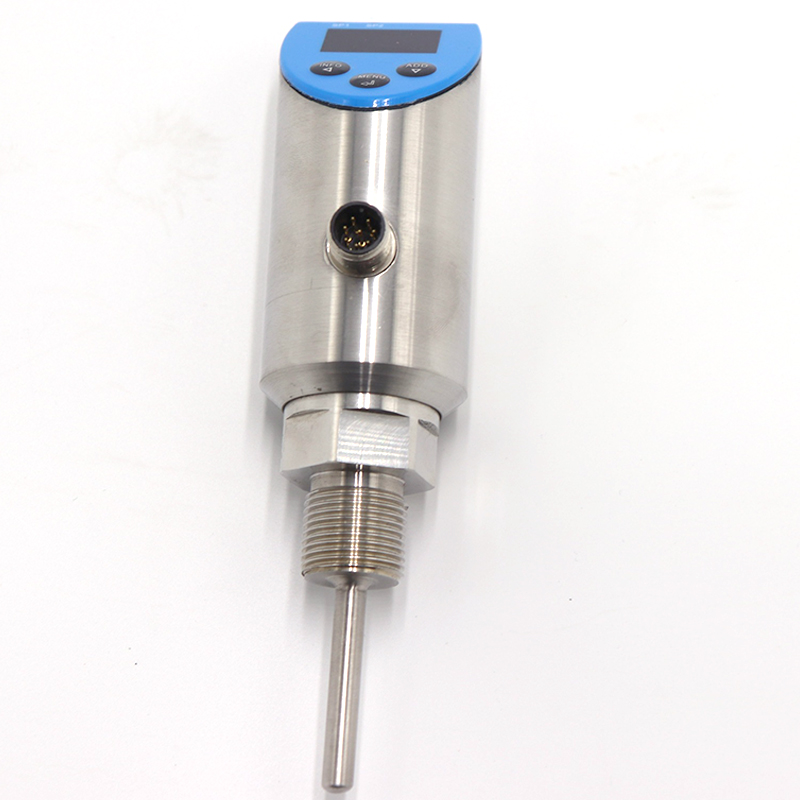

Product Show

smart High Temperature Intelligent Pressure Switch Max 600bar For Liquid Gas Steam

Dimension

Hot Product

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
